Introducing The Peaks Liquid Cooling Series
The Mikros Peaks series of cold plates combine 30 years of Mikros’ liquid cooling innovation into three levels of customizable thermal performance. In each series, our microchannel cooling matrices provide increasingly exceptional levels heat transfer with low pressure drop and required coolant flow rates. Standard size cold plates are available immediately for integration into a current design, evaluation for performance, or a baseline for an optimized custom cold plate solution.
Levels of Thermal Performance
The Mikros Peaks series is divided into three levels of cooling performance, based on more efficient levels of our proprietary MikroMatrix cooling technology. Named for beloved New England mountains, the base-level “Ascutney” series provides high performance cooling sufficient for most semiconductors up to 1kW and above. The Monadnock series employs finer microchannels for higher performance cooling with tighter thermal budgets, cooling most processors from 1kW-2kW. Our Katahdin series utilizes our most complex designs for the highest cooling power for small areas dissipating over 1kW.
Peaks Series Solutions

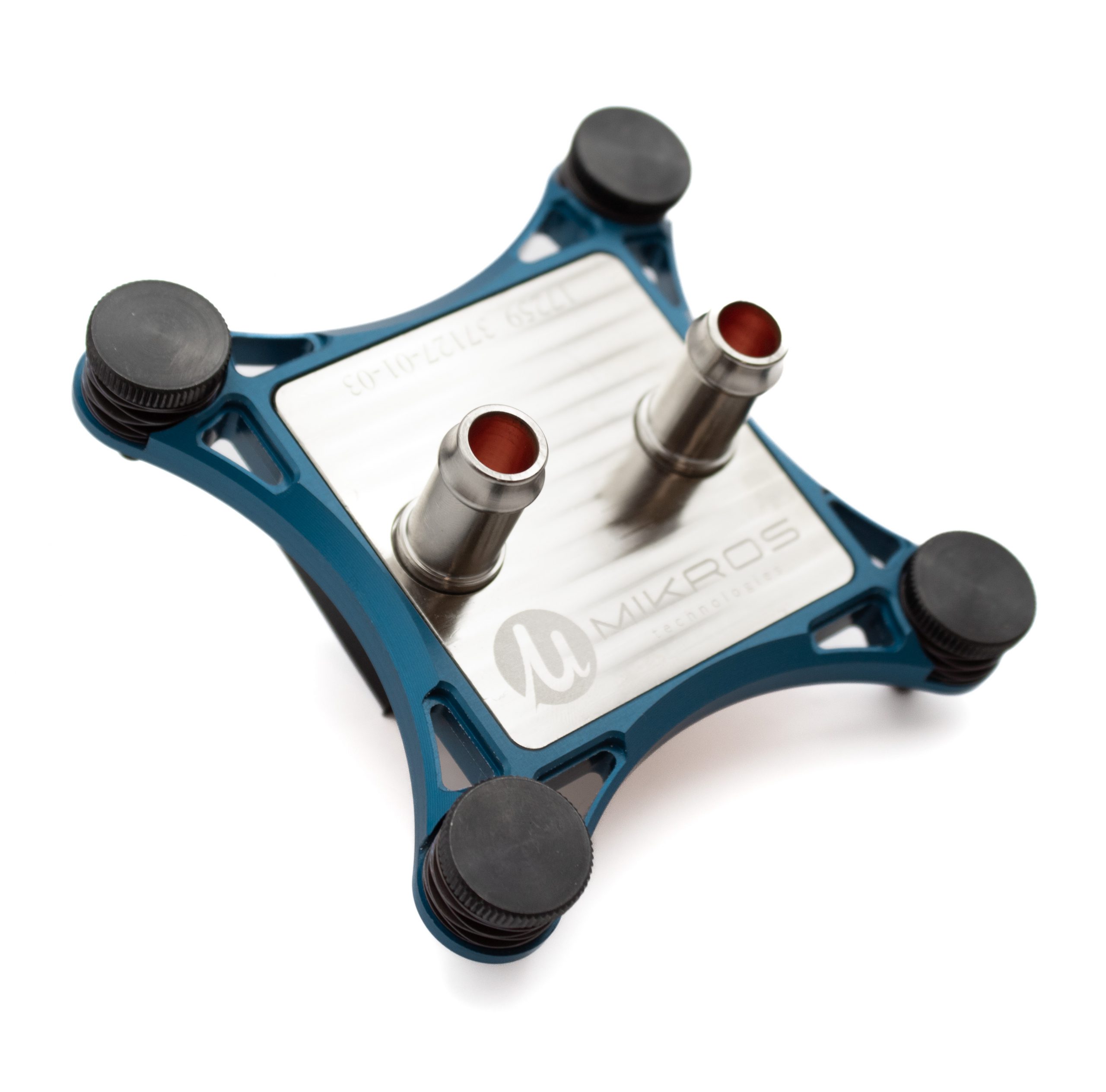

Peaks Series Cold Plates
- Cooling Capacity: 15 W/C-cm2
- Flow Channels: 160 microns
- High & Low Flow Options
- Fluid Porting & Mounting Options
- Coolants: Wide Range
- Thermal Interfaces:
Wide Range - Price: $
- Cooling Capacity: 60 W/C-cm2
- Flow Channels: 50 microns
- High & Low Flow Options
- Fluid Porting & Mounting Options
- Coolants: Waters, Glycols, High Performance
- Thermal Interfaces:
High Performance - Price: $$
- Cooling Capacity: 100 W/C-cm2
- Flow Channels: 30 microns
- High & Low Flow Options
- Fluid Porting & Mounting Options
- Coolants: Water, High Performance
- Thermal Interfaces:
Solder, Liquid Metals - Price: $$$
Find Your Custom Solution

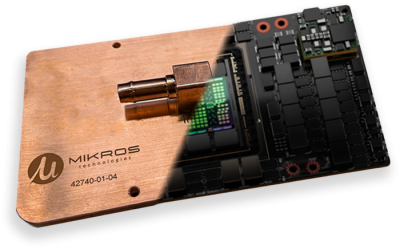

The AX-H100 cold plate provides cooling for Nvidia’s H100 tensor core GPU. The AX-H100 comes in a 1U form factor and is responsible for cooling the core die as well as the HBM’s and other surrounding components
